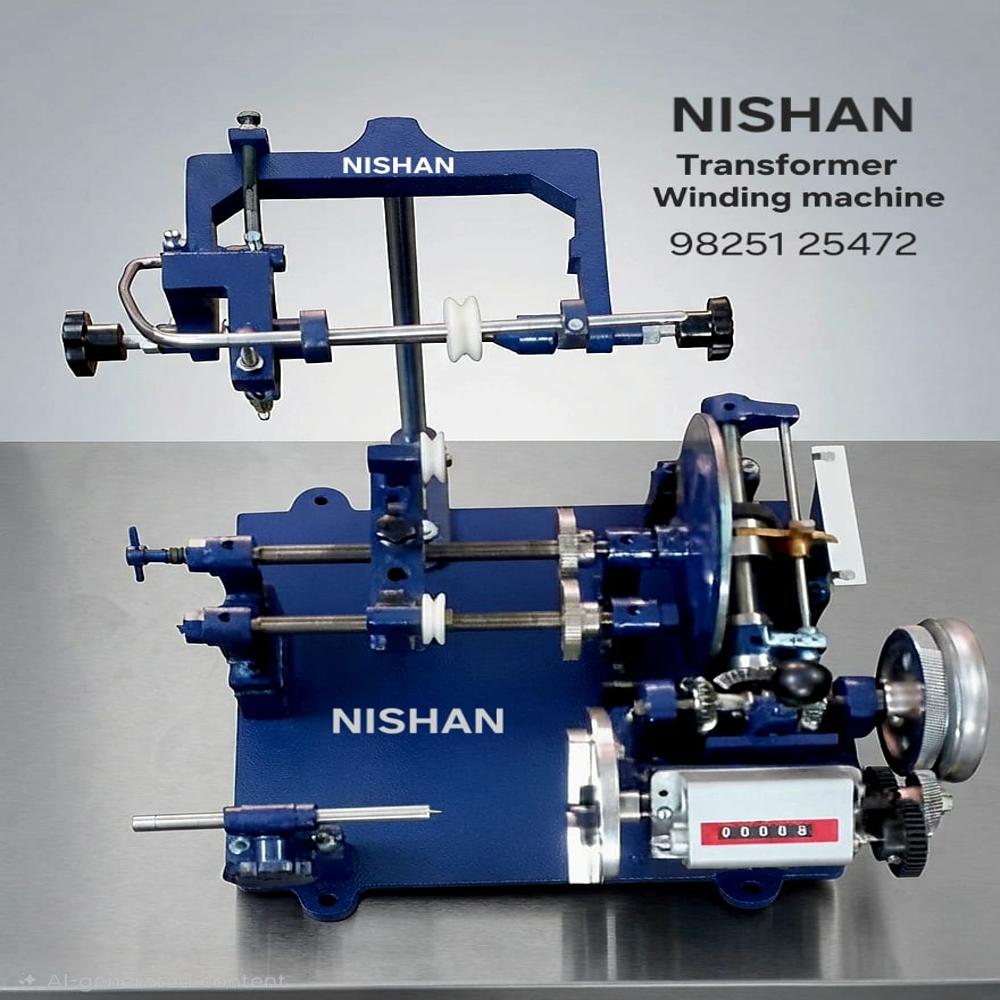

Transformer Winding Machine

Name: Transformer Winding Machine
Brand: NISHAN ELECTRIC
Price: 30000.0 INR
Availability: InStock

Price 30000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Transformer Winding Machine Specification

Product Type
Transformer Winding Machine

General Use
Winding Coils for Transformers

Material
Cast Iron & Steel

Type
Manual Winding Machine

Weight (kg)
Approx. 18-22 kg

Computerized
No

Automatic
No

Control System
Mechanical Counter

Power Source
Manual (No Electricity Required)

Coil Diameter
50-220 mm (Adjustable)

Winding Head
Single Head

Winding Speed
Depends on Operator (Hand Driven)

Winding Spindle
1 Spindle

Air Pressure
Not Required (Manual Operation)

Drive Type
Manual Hand Driven

Dimension (L*W*H)
Approx. 400mm x 250mm x 350mm

Feature
Counter Provided, Robust Build, Smooth Operation

Color
Blue

Reel Holder
Adjustable for Different Wire Spools

Display
Five-Digit Mechanical Counter

Mounting
Bench Mounted

Wire Guide
Ceramic and Steel Rollers for Smooth Wire Feeding

Maintenance
Low, Requires Periodic Lubrication

Handle
Ergonomic Handle for Comfortable Operation

Noise Level
Low

Application
Used for Relay, Choke, Power, Potential, and Distribution Transformer Coils

Finish
Powder Coated for Rust Resistance

About Transformer Winding Machine

For a limited time, secure the venerable Transformer Winding Machine-crafted from robust cast iron and steel, powder coated in a supreme blue finish. Experience fresh, smooth wire feeding with ceramic and steel rollers and indulge in unbeatable reliability with its five-digit mechanical counter. With limited stock available, this manual, hand-driven marvel requires no electricity, boasts an ergonomic handle, and features adjustable reel holders for versatile operation. Perfect for relays, chokes, and transformer coils, this low-noise, bench-mounted machine ensures minimal maintenance and supreme rust resistance. Don't miss out!

Unmatched Material Strength and Versatile Applications

Built with high-grade cast iron and steel, the Transformer Winding Machine ensures supreme durability and long-lasting performance. Its robust construction resists rust, thanks to a powder-coated finish, while the ergonomic handle and adjustable reel holder accommodate various wire spools. Ideally suited for crafting precise coils in relays, chokes, and power transformers, this hand-driven machine gives an unbeatable balance of reliability and versatility across an array of transformer applications.

Global Reach, Efficient Delivery, and Trusted Service

Our Transformer Winding Machines are distributed globally, covering premier export markets with renowned order processing and express shipping. Secure packaging ensures your machine arrives undamaged, ready for immediate use. We cater to both international and domestic clients, simplifying transactions through flexible payment terms. The machine is favored by manufacturers, suppliers, and traders nationwide and abroad, making us a trusted name in the transformer coil winding equipment industry.

FAQ's of Transformer Winding Machine:

Q: How does the manual operation of the Transformer Winding Machine benefit users?

A: The manual hand-driven design eliminates the need for electricity or expensive automation, making it ideal for locations with limited power access and offering users greater control over the winding speed and process.

Q: What types of transformer coils can be wound using this machine?

A: This machine is designed for winding coils for relays, chokes, power, potential, and distribution transformer coils, making it a versatile solution for a variety of transformer manufacturing and repair needs.

Q: When should the machine be lubricated for optimal performance?

A: While the machine is designed for low maintenance, periodic lubrication is recommended depending on the frequency and intensity of use, generally every few weeks for smooth operation and longevity.

Q: Where can this winding machine be mounted?

A: The machine is designed for bench-mounted installation, allowing secure, stable operation in workshops, manufacturing plants, and repair centers.

Q: What is the process for adjusting the reel holder for different wire spools?

A: The adjustable reel holder accommodates various wire spool sizes. Simply loosen the holder, place the new spool, adjust to the desired position, and secure it in place for smooth feeding and winding.

Q: How does the powder-coated finish benefit the machine?

A: The powder-coated finish provides superior rust resistance, ensuring the machine maintains its robust structure and attractive appearance even in demanding workshop environments.
